Product Description
Product Name |
16 inch, 24 inch , 35 1/2 inch wide interior PVC liner panel |
Product Keywords |
PVC liner panel,PVC wall panel |
Place of Origin |
China |
Brand Name |
Weixin |
Applications |
Farm House; Garages |
Size |
16''x 8' , 16'' x 10', 16''x 12', 16''x 16', 16''x 20' 24''x 8' , 24'' x 10', 24''x 12', 24''x 16', 24''x 20' 35 1/2''x 96'', 35 1/2''x 108'' |
Material |
PVC, Calcium Carbonate |
Advantage |
Easy installation and waterproof |
Packing |
5 panels per shrinking wrap, 2panels per carton |
Surface |
Gloss |
Main Market |
North America |
Joint Type |
Tongue and Groove |
Width |
16 inch, 24 inch, 35 1/2 inch |
 |
 |
 |
 |
PVC Wall Panel Features

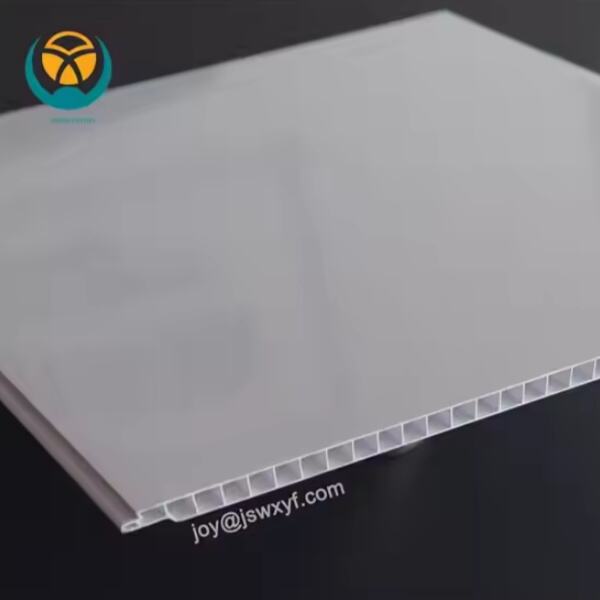

Features of 16 inch, 24 inch , 35 1/2 inch wide interior PVC liner panel
• UV coated, in bright white colour

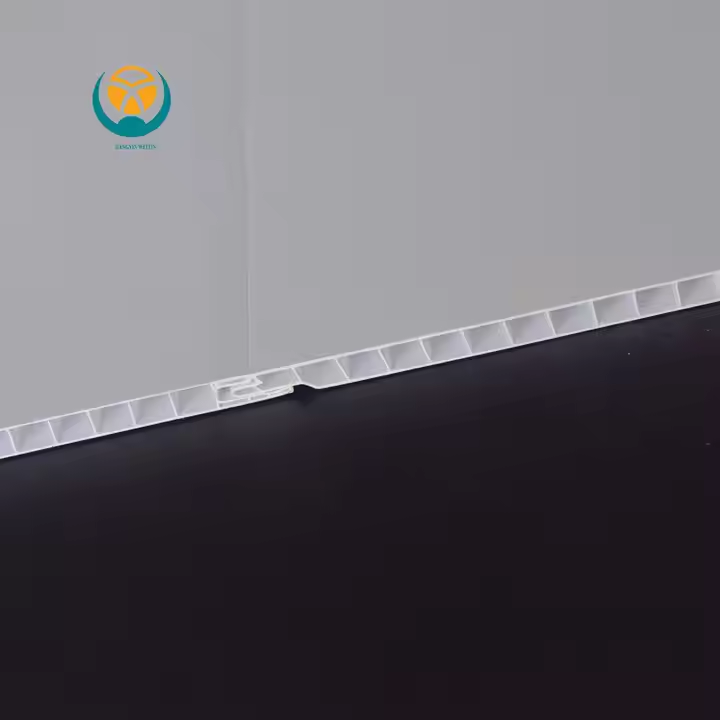

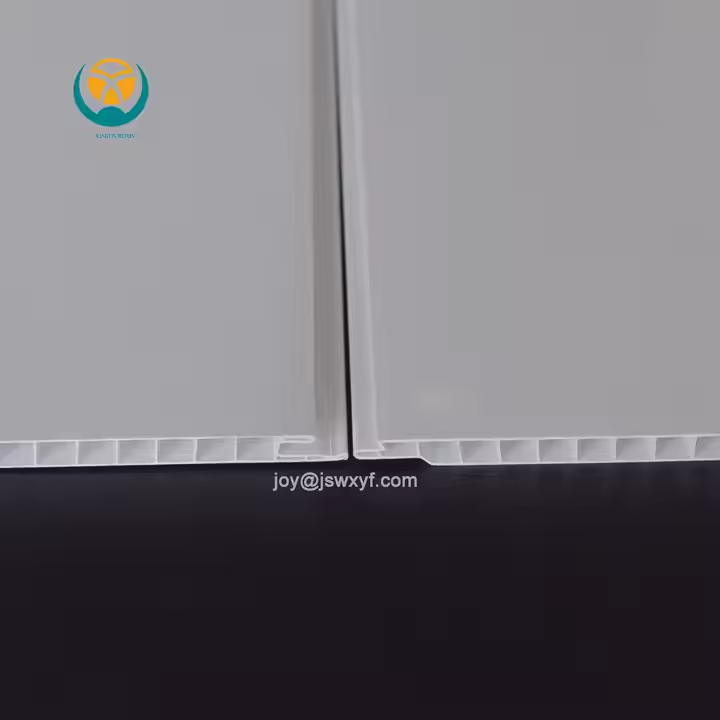

• Tongue and groove Interlocking system, easy installation
• smooth and easy clean surface
• light weight and impact resistant impact resistant
• Hygienic, mould-free, 100% moisture resistant
• Class 1 fire rated

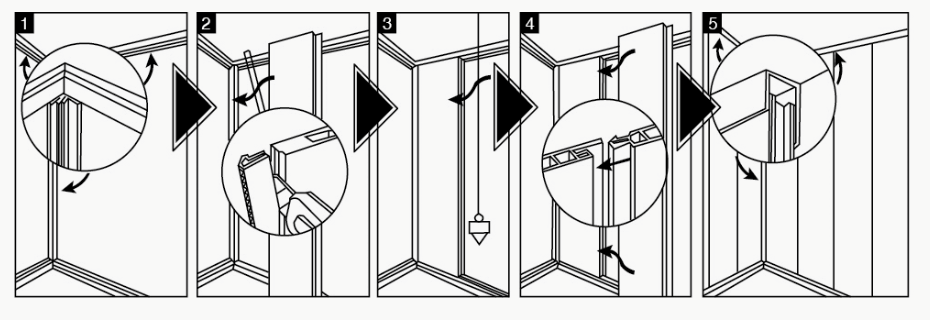

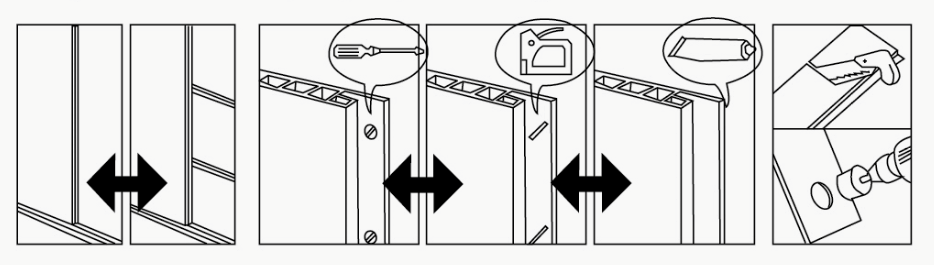

Installation Instruction
16 inch, 24 inch , 35 1/2 inch wide interior PVC liner panel can be fitted to most surfaces and can even be fitted over your existing tiles. Before fitting the panels, check if the surface is even or not. If surface is very uneven, battens/studs should be fixed at 50 cm intervals. Leave small gaps to aid ventilation somewhere on each row of battens. They can be screwed, stapled, nailed or glued to the wall.
The most popular method of fixing 16 inch, 24 inch , 35 1/2 inch wide interior PVC liner panel is gluing.If using this method please ensure that the wall is free of dust or grease. If you use glue, please note the 3 possibilities:
1.Water-based grab adhesive (e.g.liquid nails)
2.Solvent-based grab adhesive
3.Silicon
It is important to ensure that when fitting the first panel you check that it is running straight using a spirit level.
Application

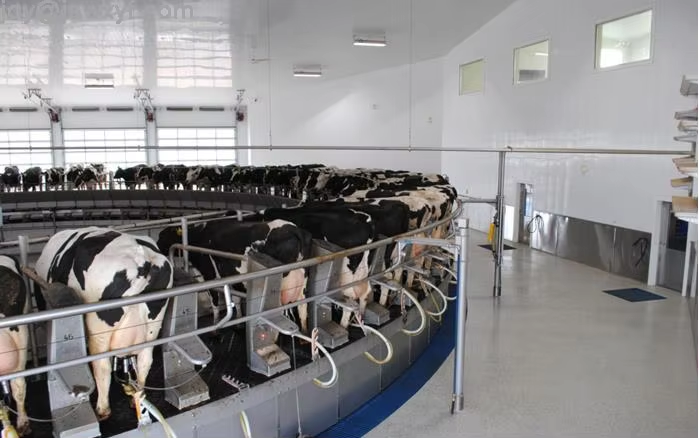

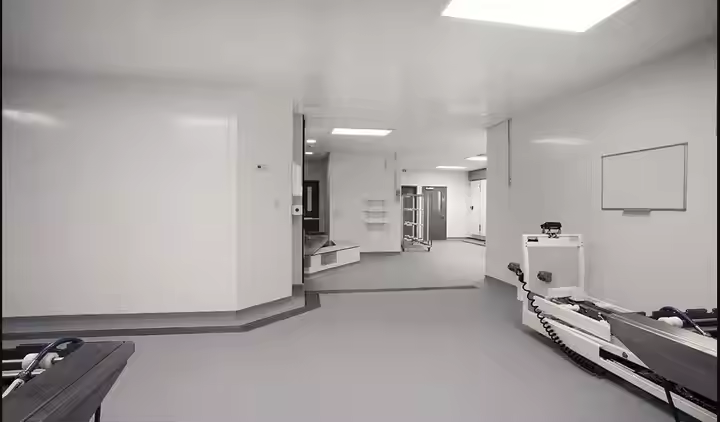

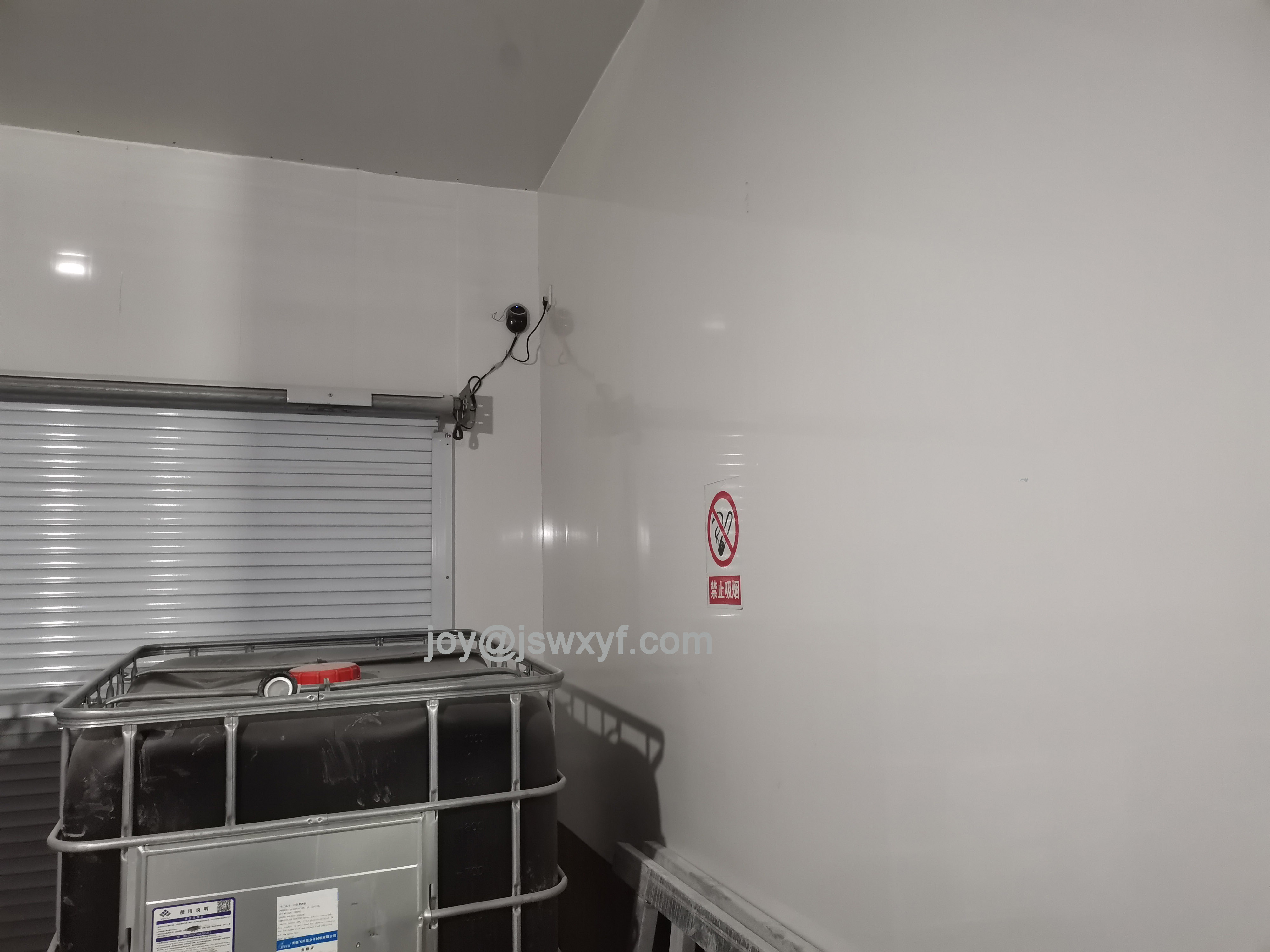

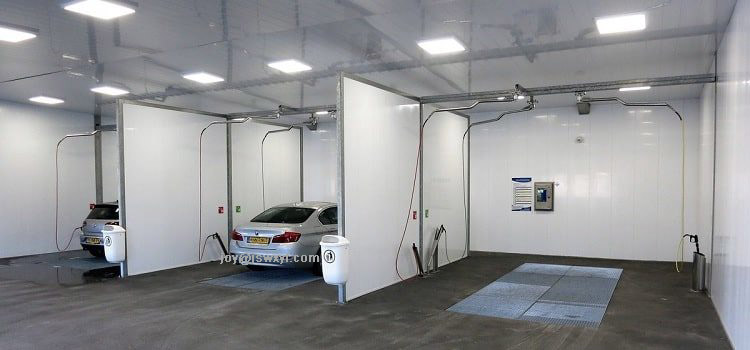

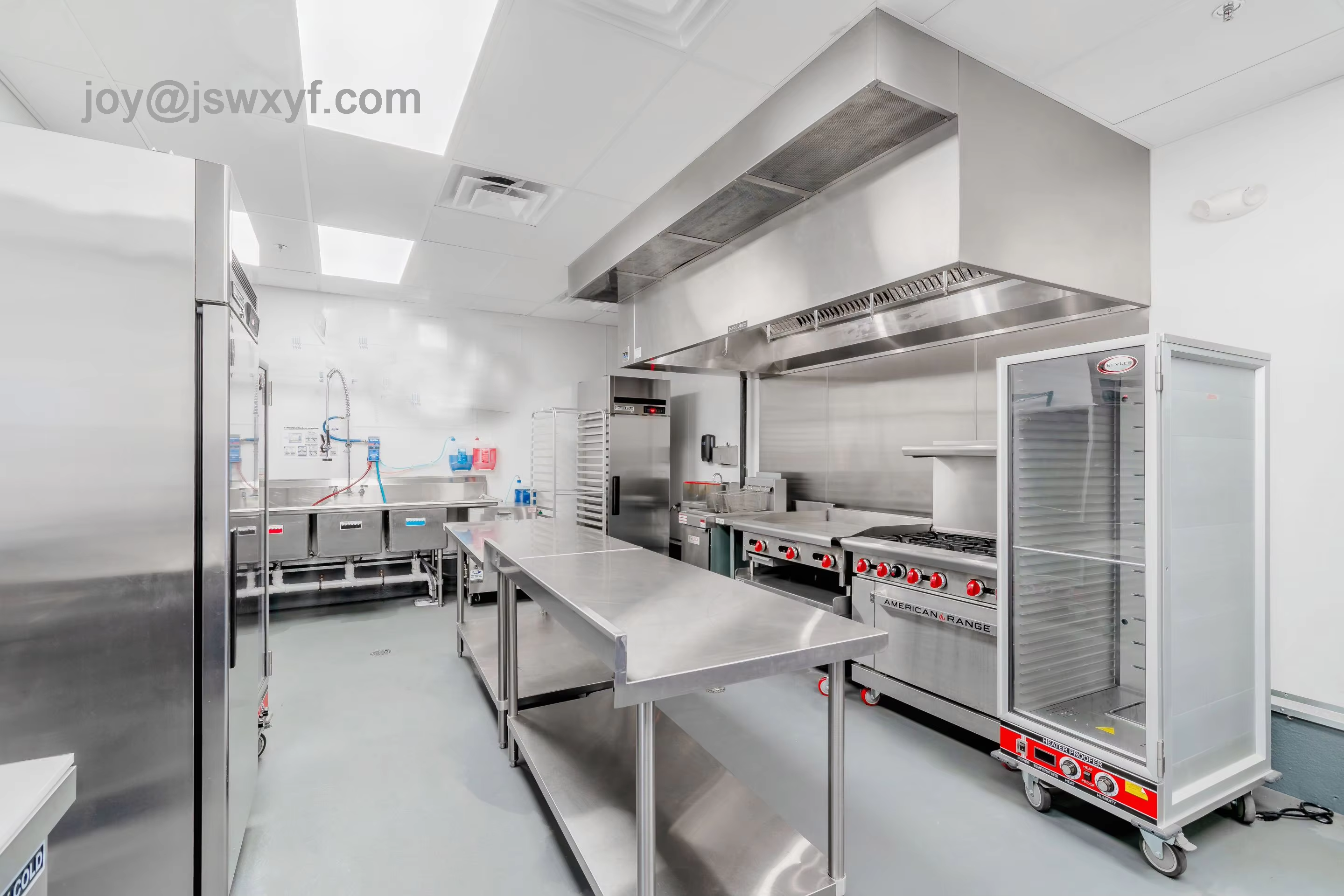

Our 16 inch, 24 inch , 35 1/2 inch wide interior PVC liner panel can be installed in car washes, dairy farms, poultry farms, food trucks, commercial kitchens, food-processing workshops, warehouses, hospitals, cannabis cultivations etc, They can be simply installed over existing ceramic tiles or directly onto cement wall.
 |
 |
 |

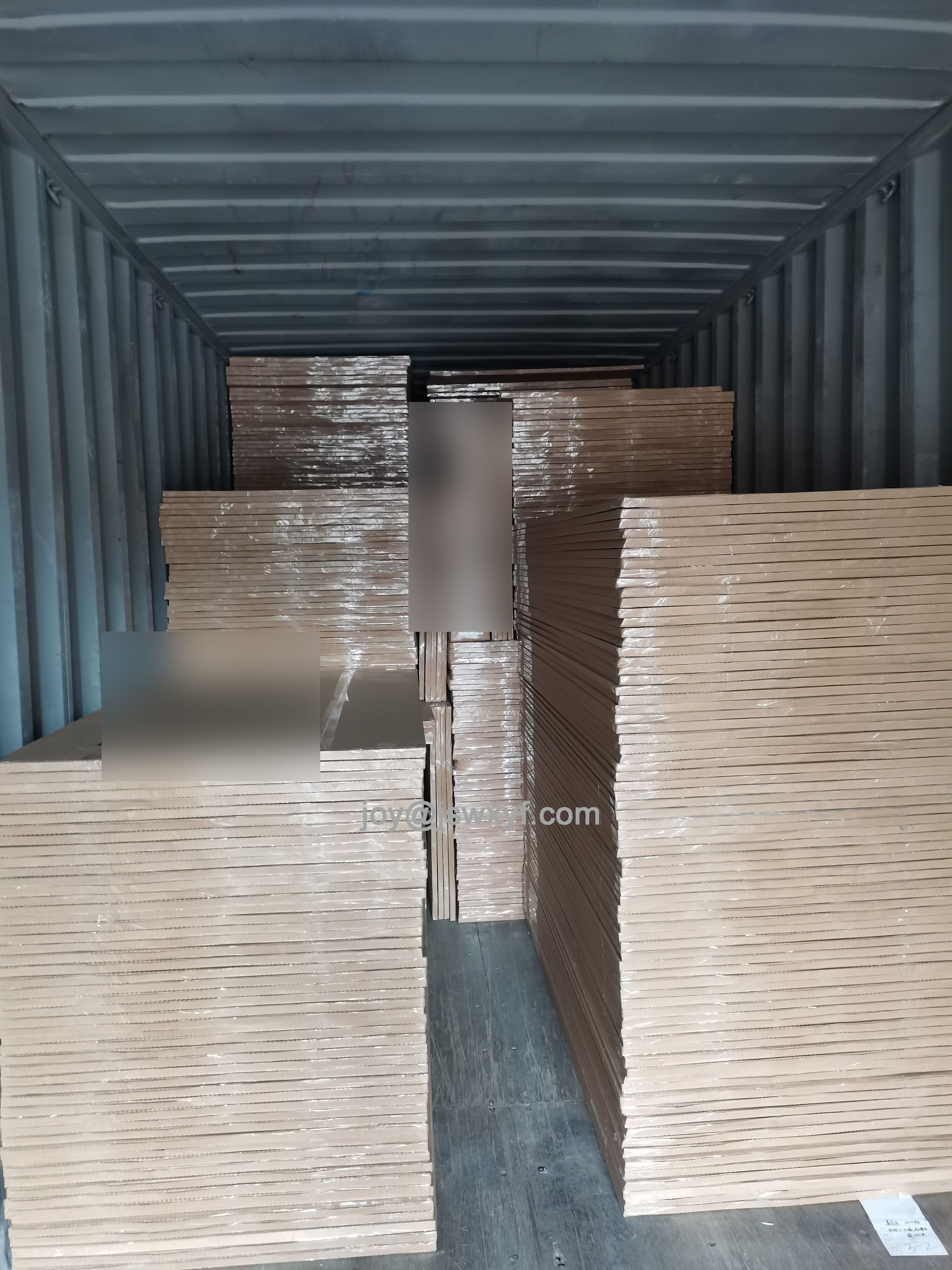

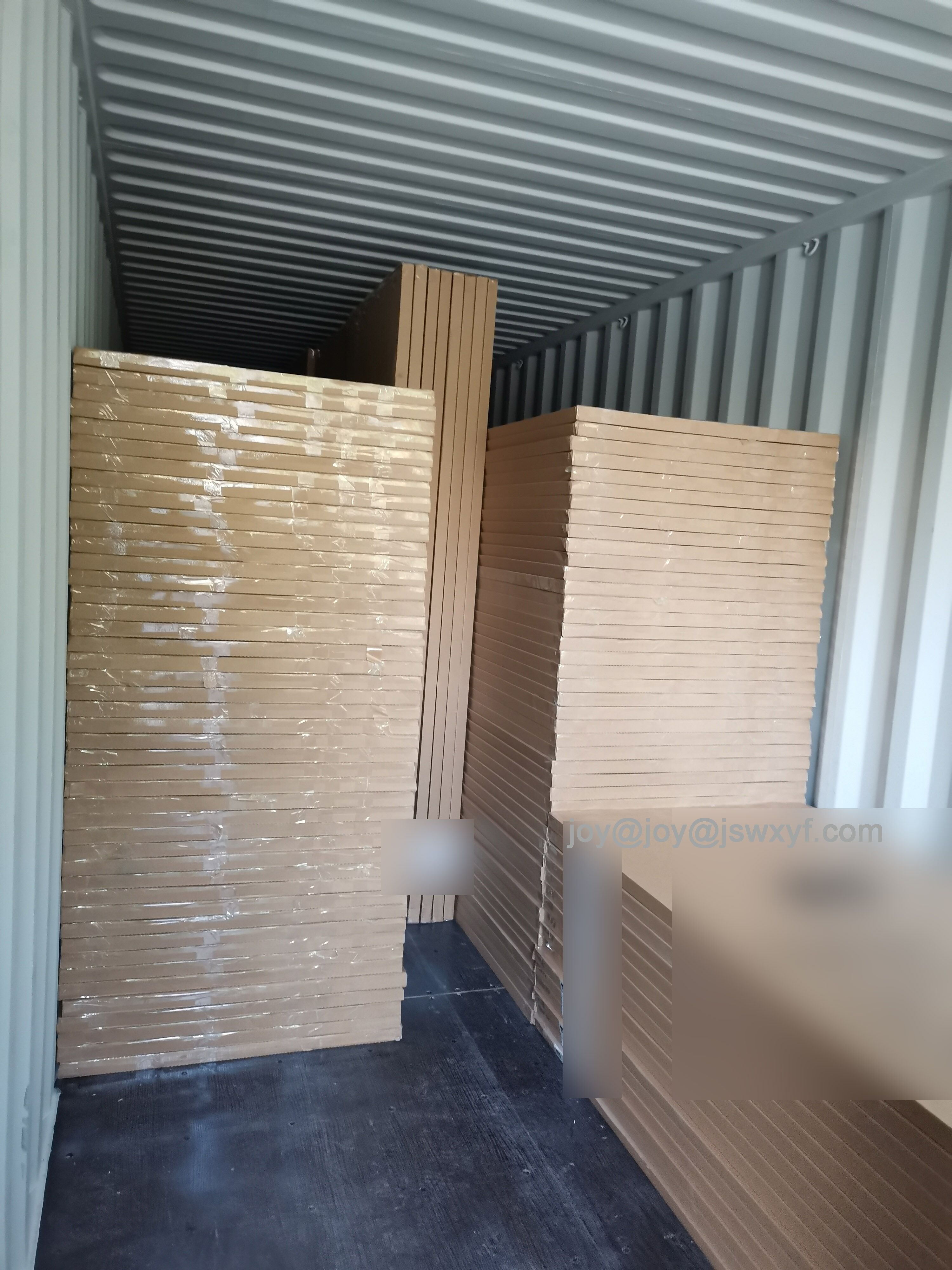

PVC Wall Panel Packing & Delivery
 |
 |
| 35 1/2 inch wide interior PVC liner panel packed in cartons , 2 panels per carton | 35 1/2'' wide interior pvc liner panels packed in cartons , 4 panels per carton |
 |
 |
| 24 inch wide interior PVC liner panel packed in pvc shrinking film, 5 panels per pack | 16''' wide PVC interior liner panels packed in pvc shrinking wraps , 5 panels per pack |
Our professionat sales team are waiting for your consultation.
